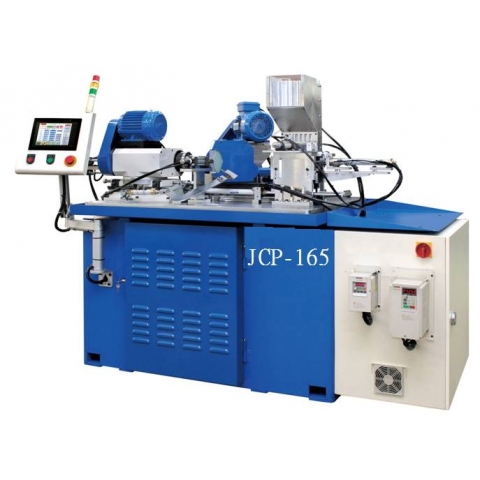

Characteristics of JCP-165:


Grinding Outer Diameter Range: Outer Diameter 3~25.4mm
Legnth available for grinding: 38~152.4mm

Grinding Length Tolerance: Controllable within +/-0.05

Drill Point Angle Tolerance: Within 1 degree

Grinding Angle: 90~165 degrees

Characteristics of the Cut-off Machine:

Cutting outer diameter range: 2-25mm

Total cutting length: 330mm

Cuttable length: 38.4mm-250mm

Cutting length tolerance: within +/-0.05mm

Flatness: within 0.5 degrees

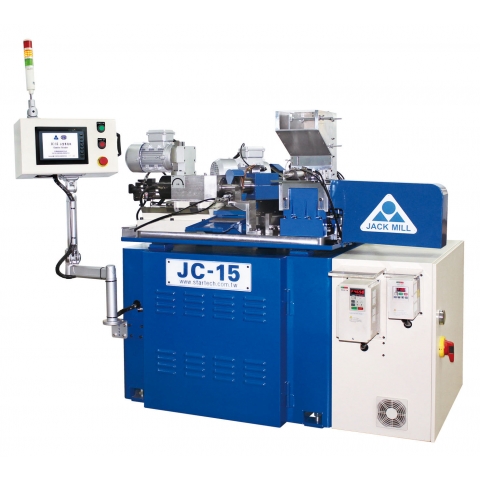

Characteristics of JC-15:

Automatic feeding, labour-saving

High-precision hydraulic cylinder operation, enhancing machine stability.

High-strength structure to reduce maintenance frequency.

All key components are imported from Germany to ensure continuous year-round operation.

Simple human-machine interface (HMI) paired with a PLC controller, significantly improving adjustment precision.
