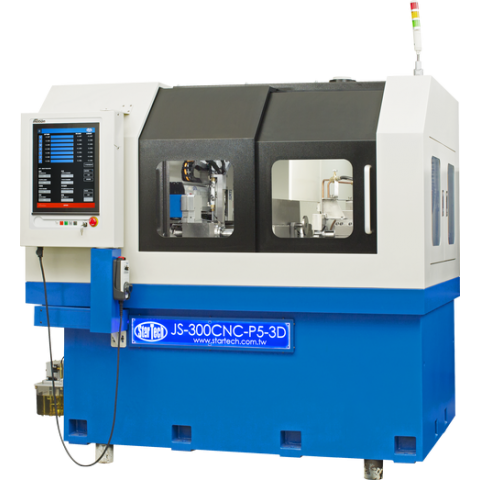

Features of JS-300CNC-P5-3D:

Three-axis simultaneous automatic feeding system

Tungsten steel V-shaped precision guide device

Plastic steel pressure wheel to prevent workpiece scratches

CNC hydraulic display screen with alarm device

Uses ANCA interactive human-machine interface (HMI)

FCD-45 castings use high-rigidity spheroidal graphite cast iron

Workhead collet uses Schaublin W20

ATEC-CYL hydraulic cylinder made in Swiss

Work axis uses Swiss SCHNEEBERGER high-precision guide rails

Mitutoyo high-precision optical scale (0.2µm) made in Japan

C1 level grinding wheel spindle screw

Features of JS-200CNC-P3/2D:

High-speed integrated automated material handling robotic arm system for high automation requirements.

Modular support system to enhance workpiece concentricity.

Accurate workpiece outer diameter guide rails and simple software operation for quick setup.

High-precision machine assembly for high repeatability accuracy and excellent surface treatment.

High-strength structure to reduce maintenance.

High-precision Micro Trend CNC controller and Delta Electric drive and servo motors for excellent resolution and accuracy.

All key components and hydraulic cylinders are imported from Switzerland or Germany to meet the requirement of year-round operation.



Three-axis Motion:

Single programmable control axis, allowing high repeatability accuracy and complete control over workpiece geometry.

The workpiece can be ground to the required size within the same chuck and can perform both rough and finish grinding functions.

X-axis, grinding wheel plunge step-grinding of the workpiece's outer diameter. Travel resolution 1µm.

Z-axis, workpiece table moves left and right. Travel resolution 1µm.
