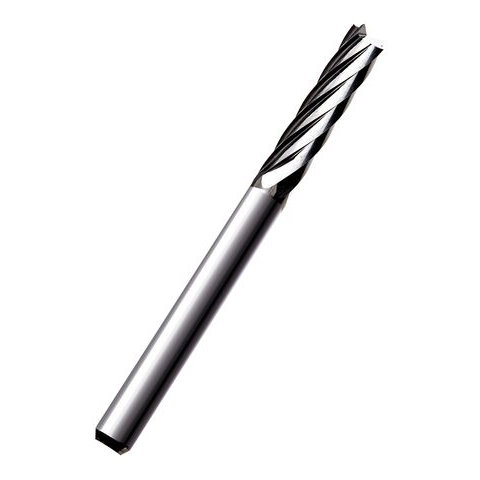

Mutiple flutes endmill
Mutiple flutes endmill
The milling cutter is made from wear-resistant super-hard tungsten carbide steel material, designed to enhance typical router bit. It effectively de-burrs from circuit boards and can be used for edge refining.
It offers both upward and downward chip evacuation methods and is suitable for high-demand surface processing of circuit board materials.
It is suitable for reinforcing the edge refinement of most PCB materials, PCB gold fingers edge trimming, copper de-burrs, etc.
最新
- Detailed introduction
| D / mm |
Standard L / mm |
Lengthened L / mm |
| Ø0.5 | 3 | 3.5 |
| Ø0.6 | 3 | 4 |
| Ø0.7 | 3 | 5 |
| Ø0.8 | 4 | 6 |
| Ø0.9 | 4 | 7 |
| Ø1.0 | 6 | 8 |
| Ø1.1 | 6 | 8 |
| Ø1.2 | 7 | 9 |
| Ø1.3 | 7 | 9 |
| Ø1.4 | 7 | 9 |
| Ø1.5 | 7 | 9 |
| Ø1.6 | 7 | 9 |
| Ø1.7 | 8 | 9 |
| Ø1.8 | 8 | 10 |
| Ø1.9 | 8 | 10 |
| Ø2.0 | 8 | 10.5 |
| Ø2.1 | 10 | 12 |
| Ø2.2 | 10.5 | 12 |
| Ø2.3 | 10.5 | 12 |
| Ø2.4 | 10.5 | 12 |
| Ø2.5 | 10.5 | 12 |
| Ø2.6 | 10.5 | 12 |
| Ø2.7 | 10.5 | 12 |
| Ø2.8 | 10.5 | 12 |
| Ø2.9 | 10.5 | 12 |
| Ø3.0 | 10.5 | 12 |
| Ø3.1 | 10.5 | 12 |
| Ø3.175 | 10.5 | 12 |
| Coating Available | Zrcn Coated(GOLDEN) | TisCrn Coated (BLACK) |
