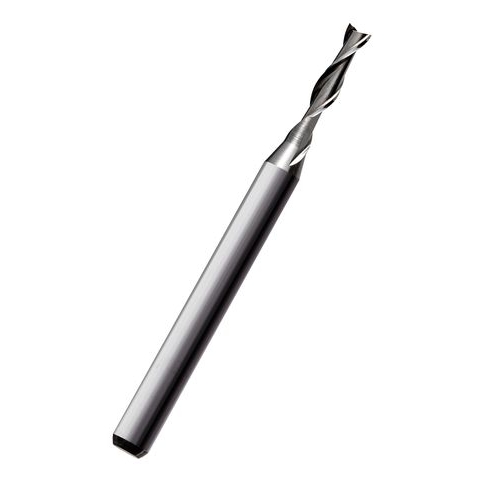

Two flutes endmill
Two flutes endmill
The two flutes endmill is made from wear-resistant super-hard tungsten carbide steel material, specially designed with a focus on the routing edge (Rake) angle and large chip clearance slots, significantly enhancing sharpness and chip evacuation efficiency.
It is suitable for routing highly ductile metal sheets such as copper, aluminum, or aluminum-copper alloys, and also applicable for fine slot forming processes in PBGA/BGA/CSP and IC substrate applications.
最新
- Detailed Introduction
| D /mm | Standard L / mm | Lengthened L / mm |
| Ø0.5 | 3 | |
| Ø0.6 | 4 | |
| Ø0.7 | 5 | |
| Ø0.8 | 4 | 5 |
| Ø0.9 | 6 | |
| Ø1.0 | 5 | 6 |
| Ø1.1 | 6 | |
| Ø1.2 | 4 | 7 |
| Ø1.3 | 6 | |
| Ø1.4 | 5 | 6 |
| Ø1.5 | 8 | |
| Ø1.6 | 6 | |
| Ø1.7 | 6 | 9 |
| Ø1.8 | 6 | 8 |
| Ø1.9 | 6 | |
| Ø2.0 | 8 | 12 |
| Ø2.2 | 8 | |
| Ø2.38 | 9 | |
| Ø2.4 | 8 | |
| Ø2.5 | 6 | 8 |
| Ø2.9 | 8 | |
| Ø3.0 | 12 | |
| Coating Available | Zrcn Coated(GOLDEN) | TisCrn Coated(BLACK) |
