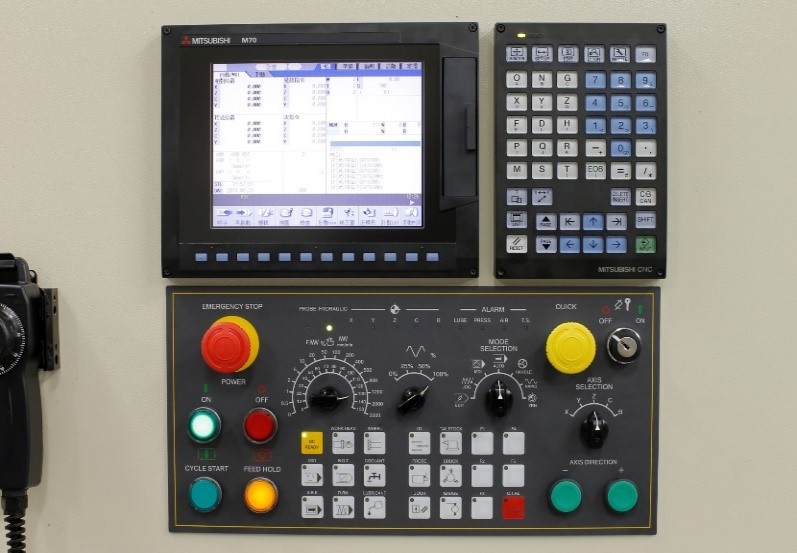

Mitsubishi M80 Controller with a custom-developed simple control interface for easier operation and setup.

High-speed built-in grinding wheel spindle with vibration damping and noise reduction.

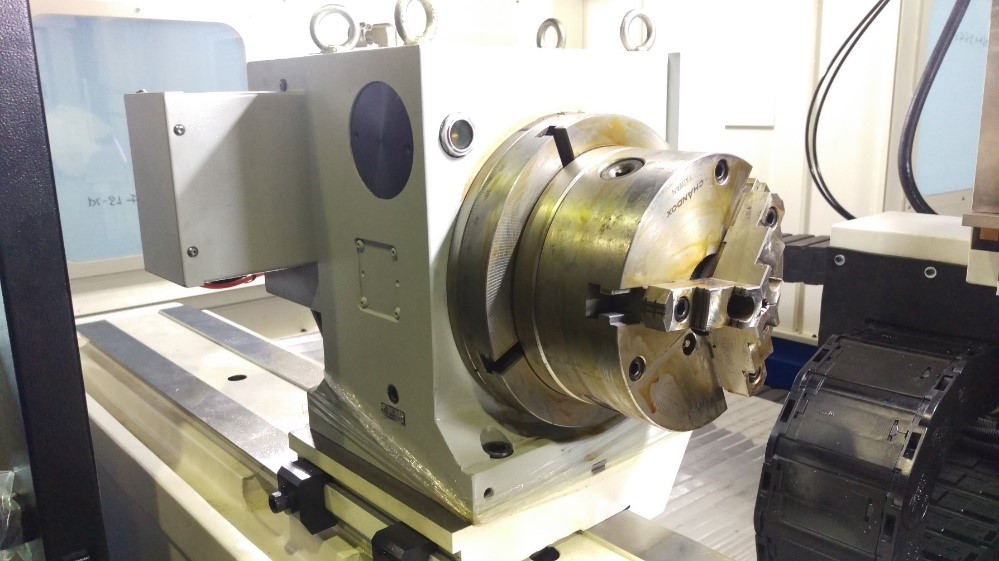

Manual three-jaw chuck (SK-8) paired with servo motor (also compatible with MT-5 tailstock device)

Maximum load capacity: approximately 350KG

Hydraulic system control with foot switch control for the MT-5 ejector pin

RENISHAW (RP3) universal probe paired with a hydraulic rotary cylinder

Ruby probe (A-5003-0233 Ø4mm)

20HP/10000rpm grinding wheel motor (built-in spindle) with spindle cooling device

Servo-controlled X-axis upper slide for achieving rotation angle functionality, angle range ±7 degrees

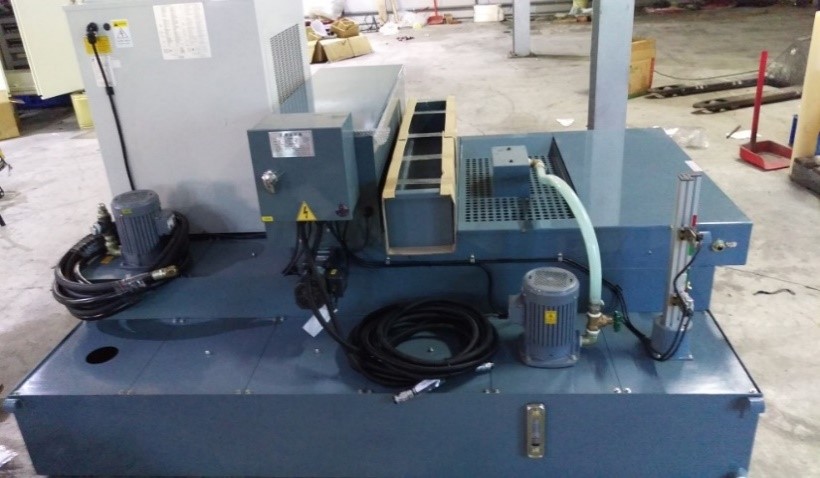

Paper tape filter with refrigerator, clean water tank 700L, dirty water tank 270L

Optional magnetic filter device
